Preloaded tooth engagement

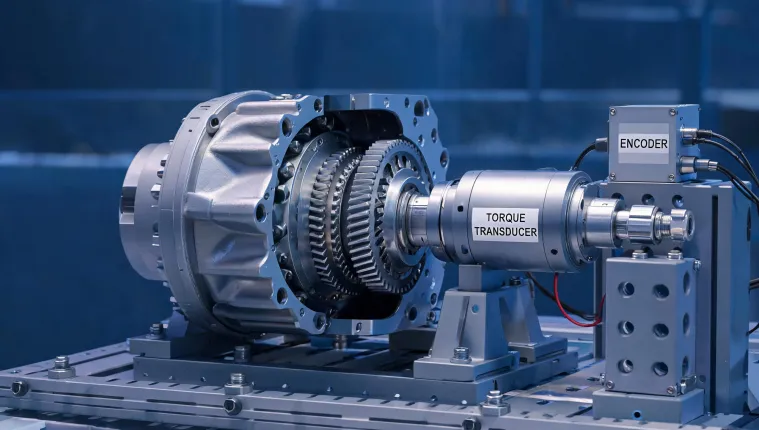

The flexspline engages across a broad tooth band, removing measurable backlash while keeping the compact coaxial package.
Flexspline motion under load, measured at the output flange.
Browse Gear UnitsGrouped engineering data
Core Specification Windows
Numbers are presented as selection windows for preliminary sizing. Final allowable torque, average speed, and life rating depend on the duty cycle and mounting temperature.
Component Sets
Ratio30 : 1 / 50 : 1 / 80 : 1 / 100 : 1 / 160 : 1 / 320 : 1
Rated Torque5 - 490 Nm by size class
Repeatability+/- 5 arc-sec with matched bearing support
Gear Units and Actuators
Output FormatHollow shaft / flange / cross roller bearing output
Input SpeedUp to 6,000 rpm intermittent depending on ratio
Quality SystemISO 9001:2015, ISO 14001, CE Machinery Directive 2006/42/EC
Why engineers specify it
Four controls that make strain-wave gearing repeatable
30-320RATIO RANGE
0BACKLASH CLASS
+/-30ARC-SEC OPTIONS
ISO9001:2015 QA
Engineering Downloads
CAD, datasheets, manuals, and inspection records
STEP models, torque tables, flange drawings, lubrication notes, and acceptance certificates are organized for fast design review.
CAD Library
STEP / IGES models for component sets, gear units, and actuator assemblies.
Open LibraryDatasheets
Ratio, torque, stiffness, bearing load, and mounting tables for preliminary sizing.
Download PDFManuals
Fastener torque, alignment checks, grease handling, and storage instructions.
Browse ManualsInspection Records
Request traceable acceptance data for qualified OEM and cleanroom programs.
Request RecordLooking for legacy documents? Send an archive request.
FAQ
Selection questions engineers ask first
Use a component set when the machine frame already supplies bearing support, sealing, and alignment. Choose a gear unit when the output bearing, housing, and grease system need to arrive as one controlled assembly.
Yes, but compare lost motion, torsional stiffness, moment load, and allowable average speed, not only nominal torque. The best choice changes with shock load and positioning duty cycle.
Provide ratio, peak torque in Nm, average output rpm, duty cycle, target life in hours, orientation, ambient temperature, and any cleanroom or vacuum handling constraints.
Need a gearbox sized for a robot joint or wafer stage?
Send the duty cycle and mounting envelope. We will return a ratio shortlist, torque margin notes, and datasheet links for review.
